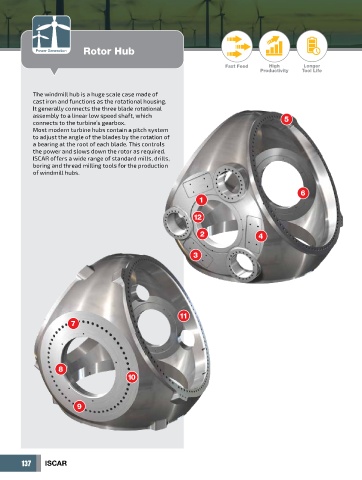

Power Generation Rotor Hub
Fast Feed High Longer
Productivity Tool Life
The windmill hub is a huge scale case made of
cast iron and functions as the rotational housing.
It generally connects the three blade rotational
assembly to a linear low speed shaft, which 5
connects to the turbine’s gearbox.
Most modern turbine hubs contain a pitch system
to adjust the angle of the blades by the rotation of
a bearing at the root of each blade. This controls
the power and slows down the rotor as required.
ISCAR offers a wide range of standard mills, drills,
boring and thread milling tools for the production
of windmill hubs.
6
1
12
2 4
3
11
7
8
10
9
